Three major benefits of a governor which enables fast discharge

1. Time saving

2. Manpower saving

3. Reduce the likelihood of occupational hazards

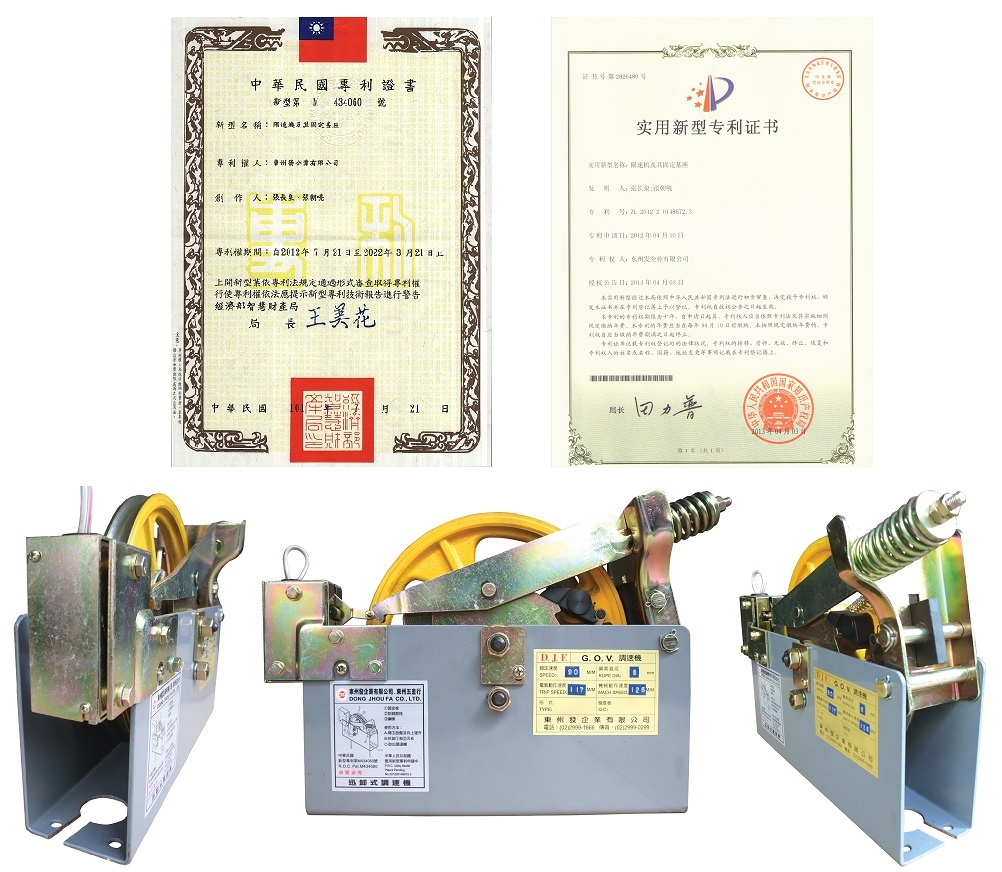

The governor boasts a safe and fast way of discharge, with the specially designed conduits at two sides of its base. The design enables steel wires to go through and without withdrawing the steel wires, a new governor can be replaced from the fixed base with ease.

Instructions:

Step 1: Remove the governor’s fastener① and machine bolt②, creating a space on the two sides of the governor. Lift the steel cable③ to create another space.

Step 2: Lift the governor from one side along the base then from the other side, thus enabling a replacement to be placed.

With the specially designed two conduits on the side that enables steel cables to go through and be removed from the base, the governor allows one mechanic to replace the unit at the governor, thus freeing up another mechanic from entering the elevator hoistway to loosen the steel cables with the elevator machine. This significantly reduces maintenance time and manpower. In addition, while mechanics no longer need to enter the elevator well to remove the steel cables, concerns over the mechanics’ safety can be addressed.
